Welding is a trade that demands precision, skill, and, above all, safety. While a welder’s hands and eyes are their most valuable assets, the welding helmet stands as the first and most critical line of defense against the intense heat, bright light, and hazardous fumes of the arc. A welding helmet is not just a simple shield; it’s a sophisticated piece of personal protective equipment (PPE) engineered to protect the face and eyes from ultraviolet (UV) and infrared (IR) radiation, sparks, and spatter. With a variety of types available, each designed for specific applications and working conditions, choosing the right helmet is crucial for both safety and productivity. This guide will explore the most common types of welding helmets, detailing their unique features, advantages, and limitations to help you make an informed decision.
1. Passive Welding Helmets
Passive welding helmets, often considered the traditional choice, are easily recognizable by their dark, fixed-shade lens. The lens is made from a special type of tinted glass that offers continuous protection from the intense light and harmful radiation produced during welding. Unlike their modern counterparts, the shade level of a passive helmet is constant, typically a shade 10 or 11, and does not change. This simplicity is a significant part of their appeal, as there are no electronic components to fail. Before striking an arc, the welder must manually flip the helmet down to shield their eyes. Once the weld is complete, the helmet is flipped back up to allow for inspection of the work. This manual process requires a certain degree of skill and coordination to avoid “flash burn,” a painful eye injury caused by brief exposure to the welding arc’s light.
Despite the need for manual operation, passive helmets remain a staple in many workshops due to their reliability and robust construction. They are often favored for their straightforward design and lack of complex electronics, making them less prone to malfunction in harsh environments. Their durable build and simple mechanism mean they can withstand rough handling and are easy to maintain. They are also a great option for welders who prefer a simple, no-frills tool that gets the job done without the need for batteries or sensors. The low cost and widespread availability also make them an accessible entry-level option for aspiring welders or those who do not weld frequently.
| PROS | CONS |
|---|---|
|
|
2. Auto-Darkening Welding Helmets
Auto-darkening welding helmets have revolutionized the welding industry, providing a significant leap forward in safety and convenience. The most notable feature of these helmets is the electronic filter, which automatically darkens from a light state (typically shade 3 or 4) to a predetermined dark shade (usually shade 9-13) within a fraction of a second after an arc is struck. This instantaneous transition allows the welder to keep the helmet on at all times, improving visibility and accuracy before, during, and after a weld. The technology relies on a series of sensors that detect the sudden change in light. This hands-free operation is a major advantage, as it allows for better work positioning and eliminates the constant need to flip the helmet up and down between welds, which can reduce neck strain over time.
While auto-darkening helmets are more expensive due to their electronic components, they provide an unmatched level of convenience and protection. The ability to see your work clearly before the arc is struck and immediately after it is extinguished saves time and reduces the chance of errors. Many models offer variable shade settings, allowing the welder to adjust the lens to suit different welding processes and amperages. These helmets also provide continuous UV and IR protection, even when the lens is in its light state. For both professional welders and hobbyists, the enhanced safety and efficiency provided by auto-darkening technology make it a worthwhile investment.
| PROS | CONS |
|---|---|
|
|
3. Pancake Welding Helmets
Pancake welding helmets are a unique and specialized type of helmet, primarily favored by pipeline welders and those who work in tight or difficult-to-reach spaces. Their distinctive name comes from their flat, circular design, which is typically made from lightweight balsa wood or hard plastic. The most notable feature of a pancake helmet is the unique “pancake” shape that fits snugly against the side of the welder’s face, blocking out light from all angles, especially from the back and sides. This design is particularly effective in outdoor or brightly lit environments where reflected light or other welders’ arcs could cause a flash. Pancake helmets are often custom-made to fit the individual welder’s face, ensuring a perfect seal against light leaks.
The helmet is held in place by a handle, which the welder grips with one hand while the other is free to work. This design provides exceptional protection against stray light and is highly effective in preventing flash burn. While they lack the hands-free convenience of traditional helmets, their specialized design and superior light-blocking capabilities make them the go-to choice for welders who prioritize eye protection in challenging conditions. The lightweight construction also helps to reduce neck fatigue during long hours of work. Although they require the use of one hand, their effectiveness in pipeline welding and other specialized applications is unmatched, making them a preferred tool for many professionals in the field.
| PROS | CONS |
|---|---|
|
|

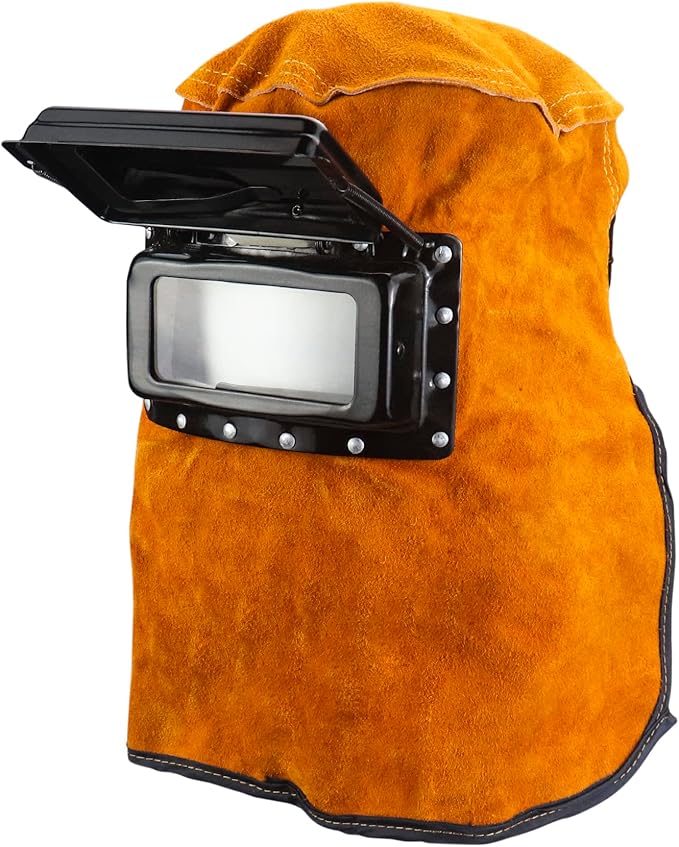

4. Leather Welding Masks
Leather welding masks, often referred to as “leather hoods,” are a flexible and highly specialized form of welding protection. Unlike rigid helmets made of plastic or fiberglass, these masks are crafted from durable, flame-resistant leather or a similar flexible material. This design makes them particularly useful for welders who work in confined, cramped, or hard-to-reach areas where a traditional, bulky helmet would be impractical. The leather provides excellent protection against sparks, spatter, and slag while offering a level of flexibility that allows the welder to get their head into tight spots. The mask typically features a fixed-shade or auto-darkening lens and a headgear strap to secure it in place.
The flexible nature of the leather allows the mask to conform to different shapes, providing a custom fit. It is important to note that while leather masks are excellent for specific applications, they do not offer the same level of impact protection as a hard-shelled helmet. Therefore, they are often used in conjunction with other safety measures, such as safety glasses or a hard hat. Their lightweight and breathable construction also makes them a comfortable option for extended periods of use, especially in hot environments. They are especially popular in industries like shipbuilding and pipefitting, where welders often have to work in unusual positions and spaces that a standard helmet cannot accommodate.
| PROS | CONS |
|---|---|
|
|
5. Respiratory Welding Helmets
Respiratory welding helmets, also known as Powered Air Purifying Respirators (PAPR) helmets, represent the highest standard of protection for welders, focusing on both vision and respiratory safety. Welding produces a variety of hazardous fumes and particles, which can be detrimental to a welder’s long-term health. A PAPR helmet addresses this risk by integrating a sophisticated filtration system into the helmet itself. This system consists of a blower unit, a battery pack, a filter, and a flexible hose that delivers a continuous stream of filtered, clean air to the breathing zone inside the helmet. The positive pressure created by the incoming air prevents fumes and particles from entering the helmet, ensuring the welder is always breathing clean air.
This is especially vital when working with materials like stainless steel, galvanized metals, or in confined spaces with poor ventilation. PAPR systems are highly effective at filtering out a wide range of contaminants, including fine particles and some gases, depending on the filter type. While these systems are significantly more expensive and bulkier than standard helmets, the unparalleled level of protection they offer makes them an essential piece of equipment in high-risk environments or for welders who spend long hours exposed to fumes. They are a crucial investment for any professional welder prioritizing their health and safety in the long run. The positive pressure also helps to prevent fogging of the lens, which is a common issue with standard helmets, providing a clearer view of the workpiece at all times.
| PROS | CONS |
|---|---|
|
|
Other Classifications
Beyond the primary types of welding helmets, there are also key classifications that differentiate models and their performance, particularly for auto-darkening helmets. These factors are crucial for welders seeking a helmet tailored to their specific needs and working conditions.
By Number of Sensors
Auto-darkening helmets can be classified by the number of arc sensors they contain, which are small light-sensitive detectors that trigger the lens to darken. While basic models have two sensors, more advanced helmets can have three or four. A higher number of sensors provides better coverage, reducing the chance of the lens not darkening when needed, especially in out-of-position welding where the arc might be partially obstructed from the sensors’ view.
By Power Source
The power source for an auto-darkening helmet’s electronics is another important classification. The three main types are:
Solar-Powered: These helmets use solar panels to recharge an internal battery, making them an economical and low-maintenance option for welders who work in well-lit environments.
Battery-Powered: These helmets use replaceable or rechargeable batteries, offering consistent power regardless of lighting conditions.
Dual Power (Solar & Battery): This type combines both power sources for maximum reliability. The solar cell serves as the primary power source while the battery acts as a backup, ensuring the helmet is always ready for use.
By Lens Clarity
The optical clarity of a welding lens is rated for performance using the EN 379 standard, which measures four key parameters: optical class, light diffusion, shade uniformity, and angle dependence. The ratings are represented as a series of four numbers, for example, 1/1/1/1 or 1/1/1/2. A higher rating (with 1 being the best) indicates superior performance with less distortion, better light diffusion, uniform shading across the entire lens, and consistent clarity from different viewing angles. Professional-grade helmets typically feature a 1/1/1/1 rating for the clearest view of the weld pool.
Final Thoughts
The world of welding helmets offers a diverse range of options, each tailored to meet the specific demands of different welding applications. From the simple, reliable passive helmet to the advanced, health-focused PAPR system, the choice ultimately depends on the welder’s needs, environment, and budget. While a passive helmet is a great starting point for hobbyists and those on a tight budget, an auto-darkening helmet provides a significant boost in convenience and safety that can greatly improve productivity. For specialized work in confined or outdoor spaces, a pancake or leather mask might be the best fit.
However, for any welder working with hazardous materials or in poorly ventilated areas, a respiratory welding helmet is not just an option—it’s a necessity for long-term health and safety. Regardless of the type you choose, remember that the primary goal of any welding helmet is to protect your most valuable assets. Always ensure your equipment is in good condition, properly maintained, and rated for the specific welding processes you’re performing. For more information on maintaining your gear, learn how to properly clean a welding helmet lens. Investing in the right helmet is an investment in your safety and your career.
